MIRAII Electric Operation Table 7 Motors
Kategori: Hospital Furniture
Rp 235.431.000
Termasuk PPNDetail Produk
- Berat 200000 gram
- Dimensi 226.3x52.2x97 cm
- Dikirim Dari Kosong
Deskripsi
Key Features
- Modern multifunction design to ensures the positioning of patient and surgeon’s team in safe and ergonomic, way while allowing execution of a several techniques and surgical procedures
- Operation simple and easy with the handset
- Specifically designed for surgical procedures
- Easy to positioning and maneuverability, enabling correct posture of both patient and surgeon
- 150 kg maximum weight capacity
- Electric HIP position
- Electric brake system
- 100mm slide stroke
TECHNICAL SPECIFICATION
| Parameter | Spesifikasi |
| TOP DIMENSION | |
| Length | 2263 mm |
| Width | 522 mm |
| HEIGHT FROM FLOOR | |
| Maximum Height | 970 mm |
| Minimum Height | 720 mm |
| Adjustment Ranges | 250 mm |

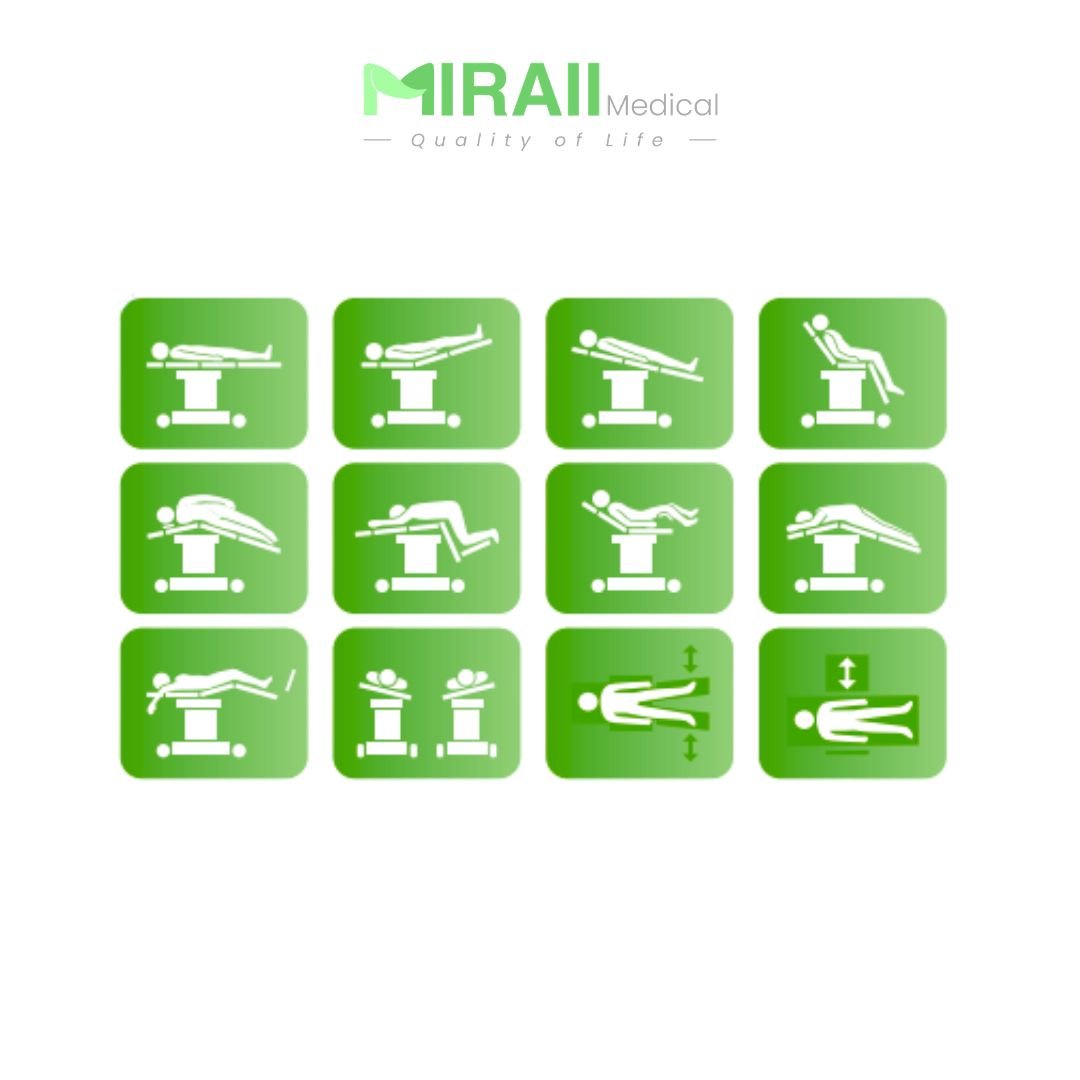

| RANGE OF PATIENT POSITIONING | |
| Reversed Trendelenburg | ≥ 22° |
| Trendelenburg | ≥ 22° |
| Lateral Tilt | ≥ 22° |
| SECTION SIZE | |
| Head Section | 325 x 280 mm |
| Kidney Bridge | 130 x 522 mm |
| Backrest Section | 522 x 500 mm |
| Seat Section | 522 x 484 mm |
| Foot Step Section | 263 x 200 mm |
| Leg Section | 253 x 510 mm |
| MOVEMENT ADJUSTMENT | |
| Head Section Raised from Horizontal Position | ≥ 45° |
| Head Section Lowered from Horizontal Position | ≥ 90° |
| Back Section Raised from Horizontal Position | ≥ 65° |
| Back Section Lowered from Horizontal Position | ≥ 10° |
| Leg Section Lowered from Horizontal Position | ≥ 90° |
| Leg Section Opened | ≥ 90° |
| Lifting Speed | 6,2 - 20 mm/s |
| WEIGHT | |
| Overall Net Weight | 200 kg |
| Maximum Patient Weight | 150 kg |
| CASTER | |
| Caster Size | 100 mm |
